NTC Thermistor-Probe Assembly with Ring Lug

Model Number : MFP

Certification : ROHS

Place of Origin : Hefei, Anhui province, China

MOQ : 2000pcs

Price : USD1.2/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000pcs/month

Delivery Time : 20-25days

Packaging Details : standard export packing

Rohs Compliant : Yes

Operating Temperature Range : -40 to 125°C

Supply Current : 0.5 mA

Resistance Range : 0.3kΩ to 2000kΩ

Wire : XLPE UL4484 26AWG 7/0.16TS OD1.05*2.2

Material : Ceramic

housing : ring lug M2/M4/M6/M8

Mounting Type : surface mount

Encapsulation : Epoxy resin encapsulated

Optical Resolution : 20:1

Output Type : Analog

Head Material : Cu, Cu/ Sn, Cu/ Ni, Nylon...Tube

Supply Voltage : 2.7 to 5.5 V

Power Consumption : 1.5mW

Insulation Resistance : ≥100MΩ 500VDC

Contact Now

NTC Thermistor-Probe Assembly with Ring Lug

Product description

NTC Thermistor-Probe Assemblies for temperature sensing and measurement.

Our NTC thermistor probe assemblies are manufactured from a specially formulated metal oxide ceramic material that is extremelly accurate in sensing temperature. Available in a variety of housings with custom design capabilities, PANR probe assemblies are suited best for transformers, electric motors, air sensors, and HVAC systems.

Product Features

• Ring lug terminals enable easy and secure surface mounting

• Completely customizable; offer a variety of housings and lead wire gauges

• Fast response times

• Provide a high-stability replacement for PT100 thermocouples; experience minimal drift from their initial electrical values

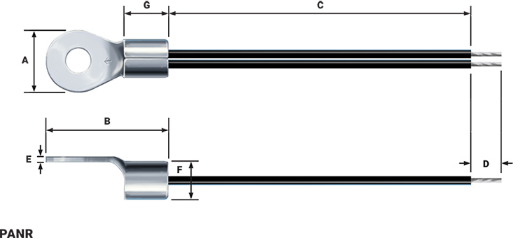

Drawing&Dimensions

NTC Thermistor-Probe Assembly with Ring Lug

• Isolation voltage to 2.2kV

• Resistance at 25℃ from 10kΩ to 250kΩ

• Beta value from 3,000K to 4,500K

• Dissipation constant of 3 mW/℃

• Thermal time constant of 40.0 s

• Max. power of 125mW

• Mounting hold diameter of 3.7mm or 4.4mm

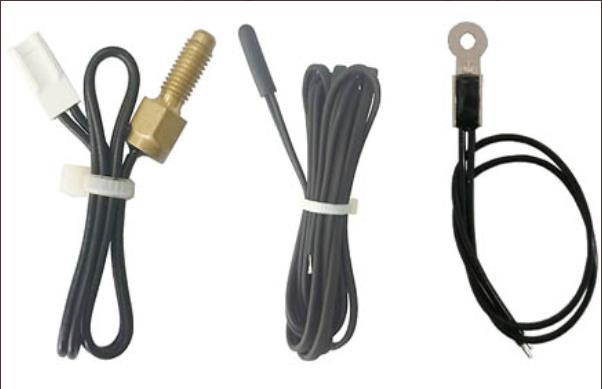

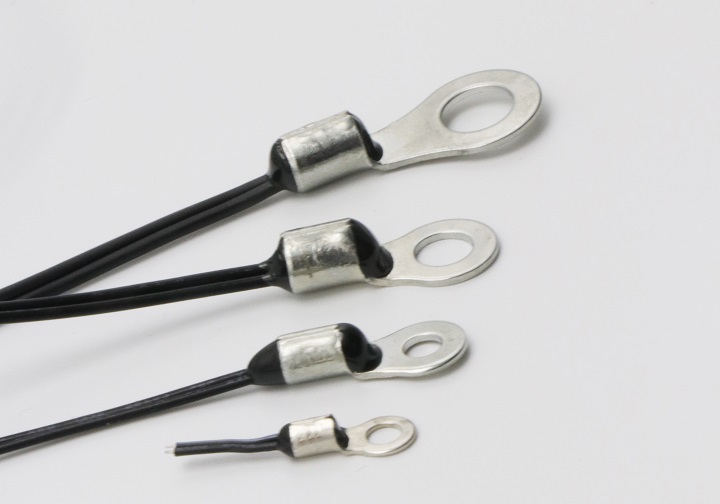

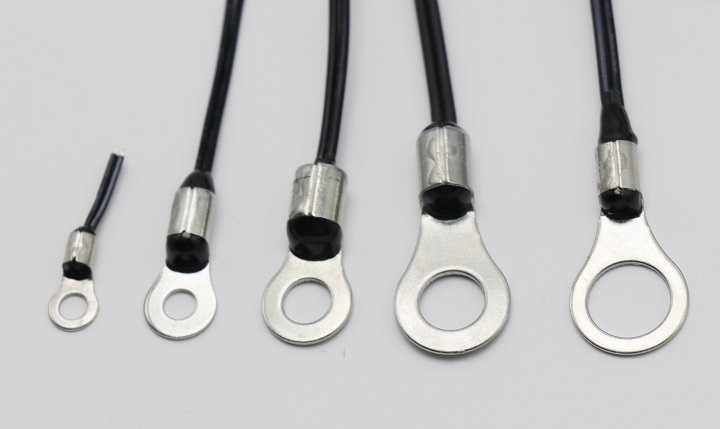

Product image

NTC Thermistor-Probe Assembly with Ring Lug

NTC Thermistor-Probe Assembly with Ring Lug Images
