Product Description:

100k NTC welding machine temperature sensor refers to a specific type of temperature sensor used in welding machines, where "NTC" stands for "Negative Temperature Coefficient."

"100k" denotes the nominal resistance of the NTC thermistor at a specific temperature, usually 25 degrees Celsius. NTC thermistors exhibit a decrease in resistance as temperature increases, and the nominal resistance value helps characterize their behavior.

These sensors are utilized in welding machines to monitor the temperature of various components during welding processes. Temperature control is crucial in welding to ensure proper fusion of materials, prevent overheating, and maintain the integrity of the weld.

The NTC thermistor in the sensor measures the temperature and provides feedback to the welding machine's control system, allowing for precise temperature regulation and adjustment as needed during welding operations.

Overall, the 100k NTC welding machine temperature sensor plays a critical role in maintaining optimal welding conditions, improving weld quality, and ensuring the safety and efficiency of welding processes.

Specification:

R25℃=100KΩ±1%

B25/50=3950K±1%

Probe: OT6-4 Cu/Sn

Wire: single wire UL1332 26AWG 7/0.16 OD1.15 200℃

Length: 900±10mm

Tube: glass fiber φ4*35mm

Connector: XH-2Y Red

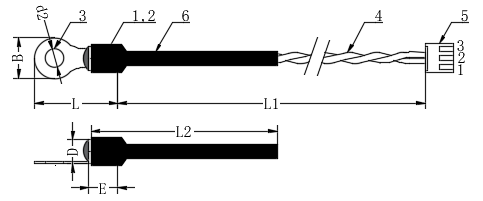

Drawing:
