Ntc Thermistor Sensor For Automotive Seat Heater 10k 3990k

  • 1
  • 2

Brand Name : Jingpu Brand

Model Number : MF5A-5

Certification : CE,ROHS,ISO

Place of Origin : Hefei, Anhui, China

MOQ : 1000

Price : USD 0.1-5 /PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2-7days

Packaging Details : Carton packing

Way to install : Inserting

Sensing way : Resistence

Output signal type : Analog Type

Material : Ceramics

Measuring the dielectric : Temperature

IP code : IP64

Transport package : Carton Packing

Appearance : Yellow/Blue

Warranty : 2 years

After-sale service : Quality Assurance

Customization : Yes

Operating Temperature : -40℃~125℃

Resistence Value : Custom

B Value : Custom

Shipping : Shipping, Air, or Express

Wire : PVC, , Enamel Insulation

Contact Now

Ntc Thermistor Sensor For Automotive Seat Heater 10k 3990k

Brief Instruction:

Generally FEP wire, the color blue, yellow, green, etc. Its resistance value R25℃=5kΩ&8kΩ&10kΩ,B25/85=3988k&B25/85=3990k. This seat heater thermistor sensor mainly used for temperature monitoring in the automotive seat heater.

Features:

Comply for ROHS standard

Wide operating temperature range: -40℃~125℃

Application:

Automotive Seat heater

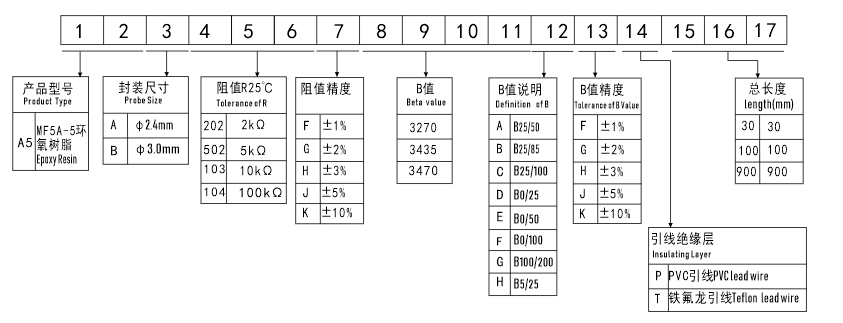

Part Number Code:

Ntc Thermistor Sensor For Automotive Seat Heater 10k 3990k

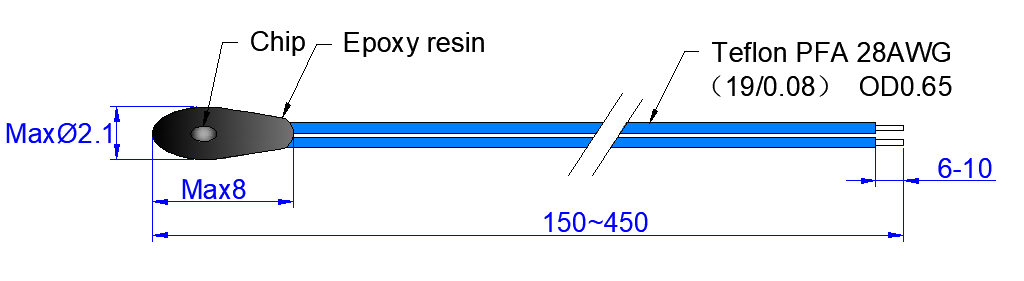

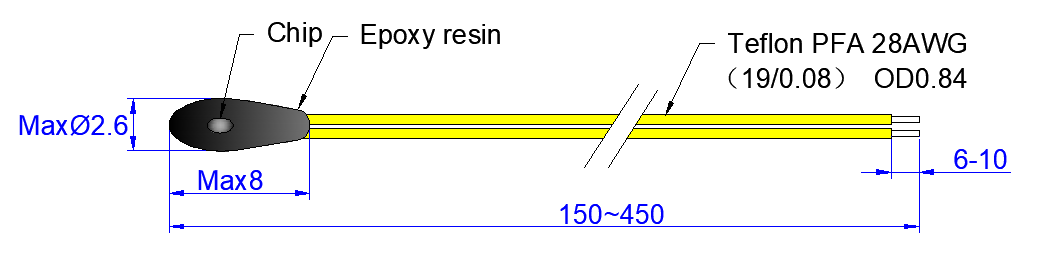

Structure and Dimensions:

Ntc Thermistor Sensor For Automotive Seat Heater 10k 3990k

Ntc Thermistor Sensor For Automotive Seat Heater 10k 3990k

For your reference:

Rec.at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermaltime constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Max.3.0 Max.20 -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) 13.5~1000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

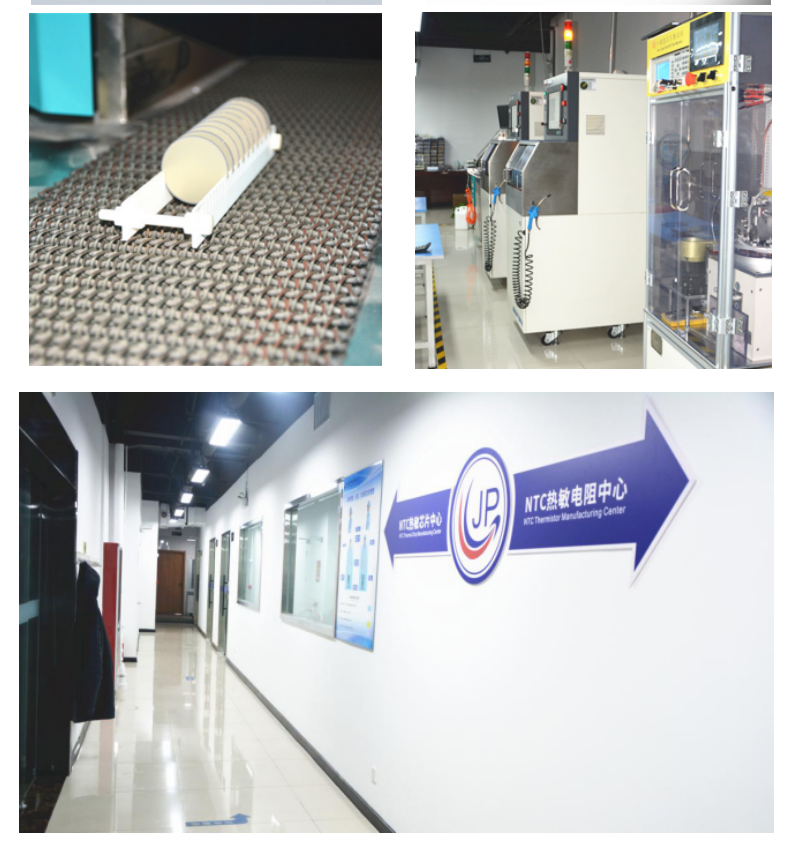

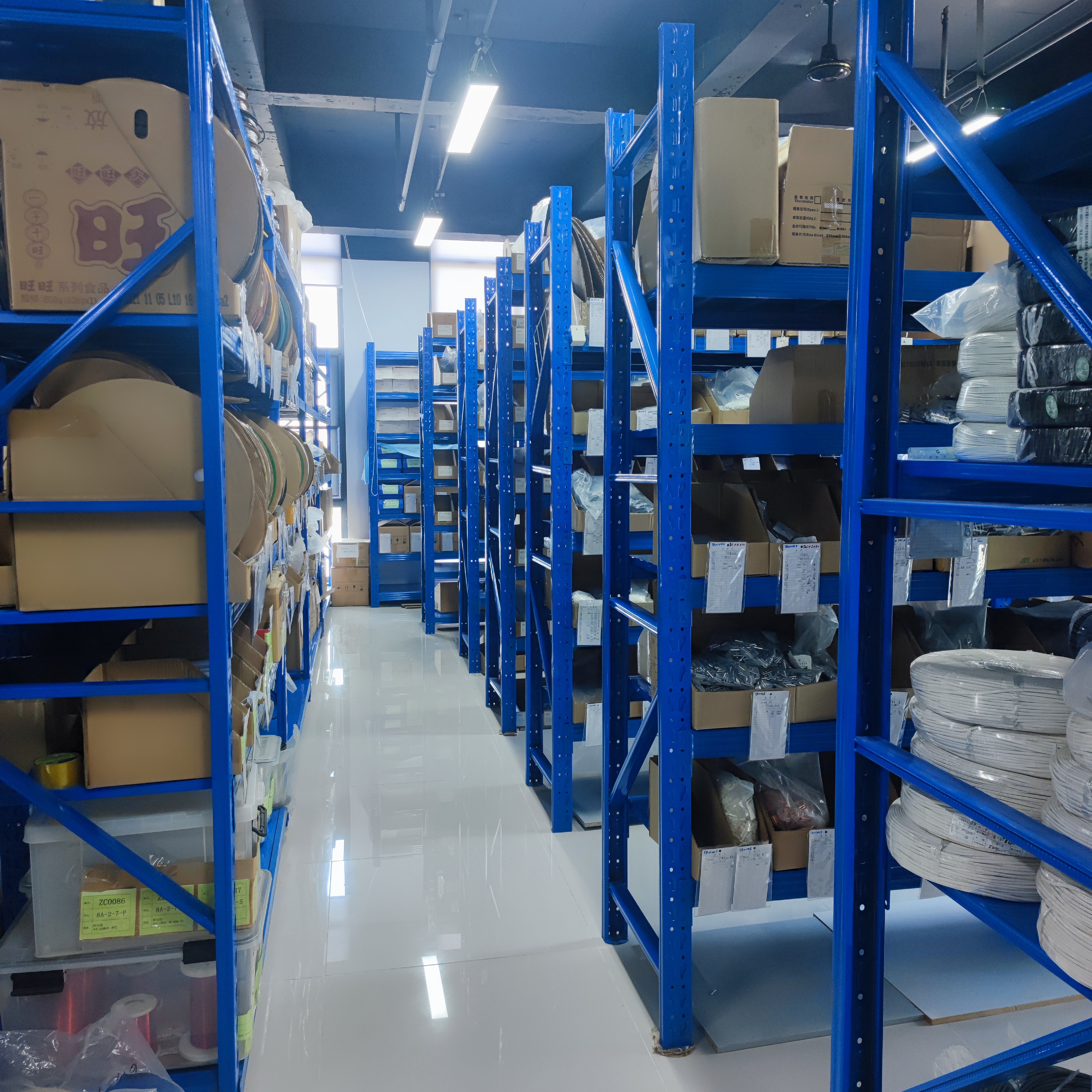

More about us:

Ntc Thermistor Sensor For Automotive Seat Heater 10k 3990k

Ntc Thermistor Sensor For Automotive Seat Heater 10k 3990k

Ntc Thermistor Sensor For Automotive Seat Heater 10k 3990k

Standard packing (inner packing): 500pcs/polybag

Operation Notice

1. Application:Temperature measure and control；　

2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.

3. Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.

4. Storage Temperature -10℃～40℃,≤75%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
