Surface Mount NTC Thermistor Probe

Name: Surface Mount NTC Thermistor Probe
Brand: JP SENSOR
Price: 1 USD

China Surface Mount NTC Thermistor Probe wholesale

Brand Name : JP SENSOR

Model Number : MFP-2A

Certification : ISO9001

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Standard Packing

Price : To be negotiated

Probe : Cu/Sn RNB5.5-3.5

Wire : cable & PVC cable&XLPE insulated wire(optional)

Encapsulation : Epoxy resin

Chip : NTC Chip

Ring Terminal : M3

OEM/ODM : Available

Contact Now

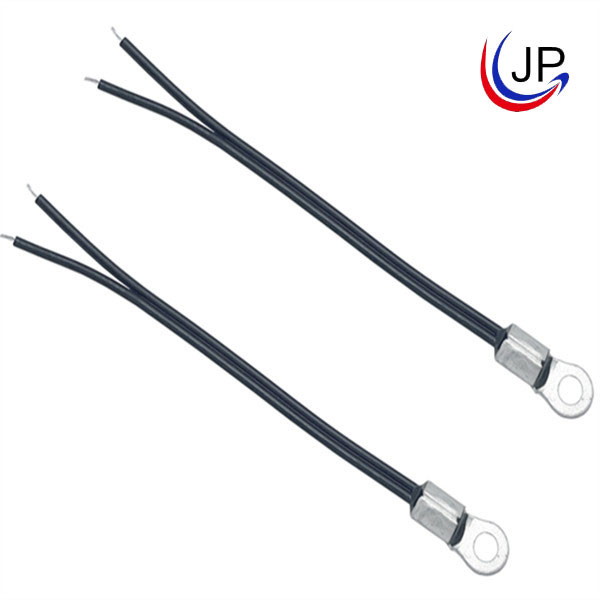

RNB5.5-3.5 M3 Ring Terminal NTC Surface Mount Temperature Sensor

RoHS

Interchangeability

surface mount temperature measurement

Cu/Sn RNB5.5-3.5

Eyelets to fit M3

Product Description:

M3 Ring Terminal Ntc Sensor RNB5.5-3.5 be consist of the insulated wire ( cable & PVC cable,XLPE insulated wire), NTC chip and epoxy resin, ring lug M3.

Cu/Sn RNB5.5-3.5 Probe

With UL2651 26AWG WIRE 105℃

With UL4413 26AWG WIRE 125℃

Features:

RoHS

Interchangeability

surface mount temperature measurement

Cu/Sn RNB5.5-3.5

Eyelets to fit M3

Application:

Battery Covers

Power Distribution

Heat Sinks

Control cabinet

Electrical Specification:

Rec. at 25℃(kΩ)	Beta value	(In air) Pmax(mW)	δ(mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	/	/	-20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire)	100~5000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600
