Skin Medical Temperature Sensor 2.252K For Human Body Surface Temperature Measurement

Brand Name : JP SENSOR

Model Number : JP402

Certification : CE, ISO13485, ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million Pieces per Year

Delivery Time : 2 weeks

Packaging Details : Standard Packing

Price : Negotiable

Brand : JP Sensor

Usage : Human body surface temperature measurement

Charateristic : Reusable

Operating temperature range : 0℃~50℃

Application : Medical monitoring equipment in hospital

NTC Thermistor : R25=2.252KΩ

Coating : Epoxy Resin

Warranty : 2 Years

OEM/ODM : Support

Customization : Support

Contact Now

2.252KΩ Skin Medical Temperature Sensor For Human Body Surface Temperature Measurement

Product Details:

Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk, Mono jack connector 6.3mm or custom connector according to the customer’s requirement. The rated resistance value is 2.252KΩ. The total length is 3Meters, and the sensor measuring tolerance is within (25~45)℃ ±0.1℃. Used for monitors, suitable for YSI400 series products replacement.

Features:

Human body surface temperature measurement

Reusable

(25~45)℃±0.1℃

Operating temperature range: 0℃~50℃

Application:

Suitable for medical monitoring equipment

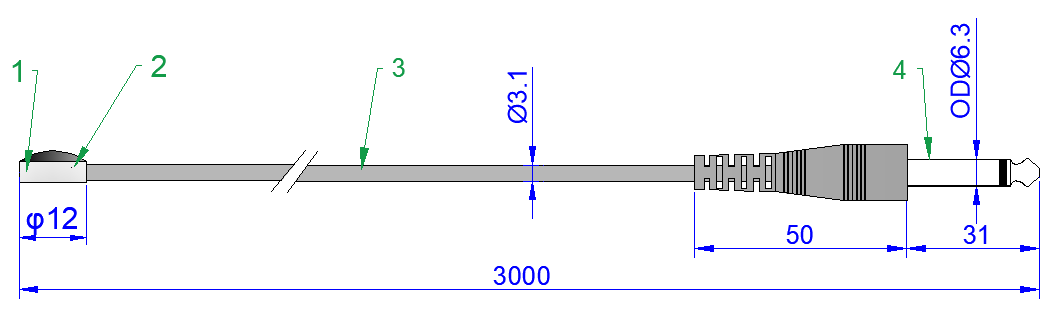

Structure and Dimensions:(Unit: mm)

Skin Medical Temperature Sensor 2.252K For Human Body Surface Temperature Measurement

NO. Name Material Specification QTY. Remarks
1 Chip NTC Thermistor 1 R25=2.252KΩ
2 Probe SUSφ12*2 1 /
3 Encapsulation Epoxy / gray
4 Cable 24AWG/1C OD3.1 Shielded round sheath wire 1 gray
5 Plug 6.3MP-φ6.3*31-50 Single Audio Plug 1 gray

Electrical Specification:

Item Code Test condition Performance requirements Unit
(Rated resistance) R25℃ +25℃±0.02℃ 2.252 or 10 kΩ
(B value) B25/50 +25℃±0.02℃, +50℃±0.02℃ 3935 K
(Response time) τ 23℃(air)→44℃(water),≤±0.1℃ ≤150 S
(Max.Energy Dissipation) Pmax In water(≤1.2mA),≤0.02℃ Approx 50 μW
(Withstand voltage) Hi-pot AC1500V 1mA 1s In still air No break down V
(Operating Temp. Range) OTR In still air 0～50 ℃

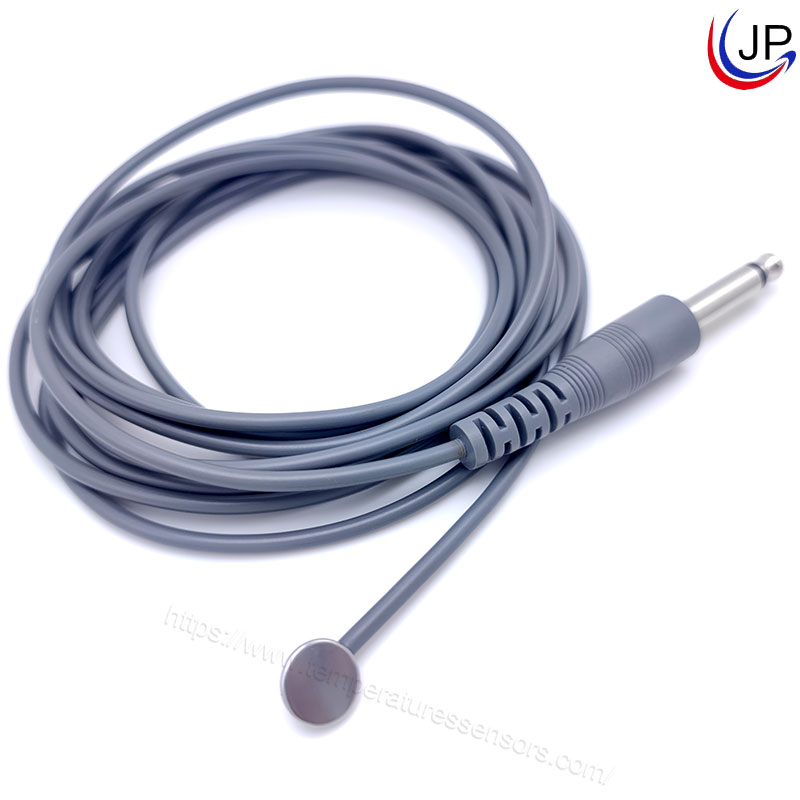

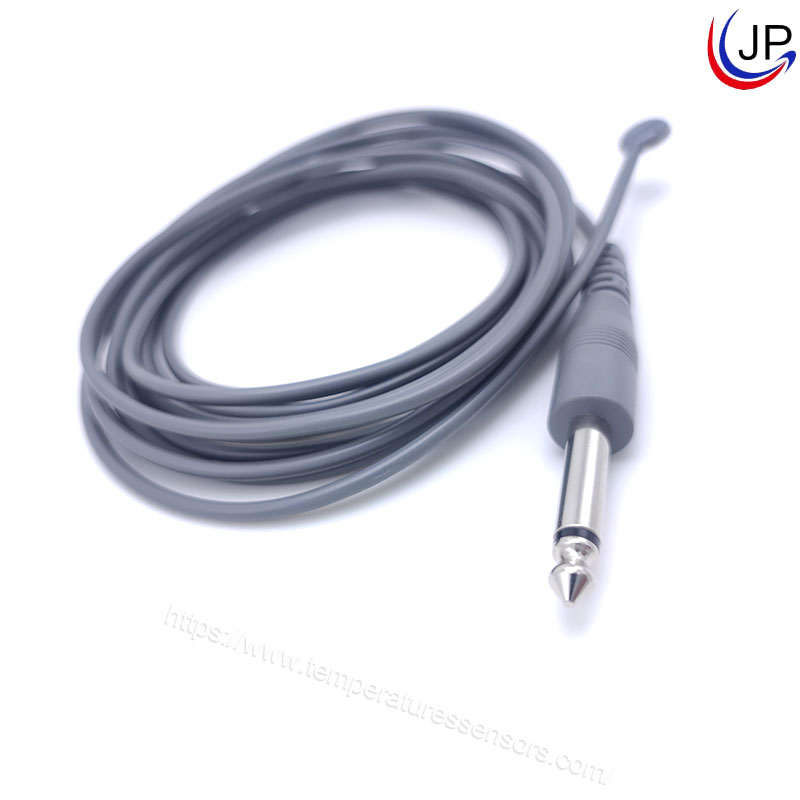

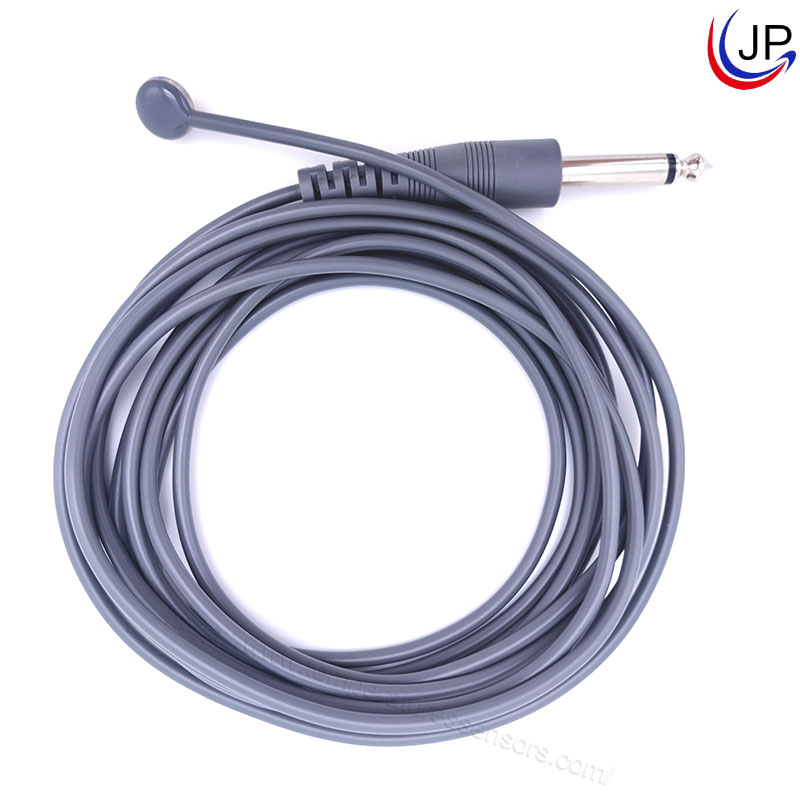

Product Images:

Skin Medical Temperature Sensor 2.252K For Human Body Surface Temperature Measurement

Skin Medical Temperature Sensor 2.252K For Human Body Surface Temperature Measurement

Skin Medical Temperature Sensor 2.252K For Human Body Surface Temperature Measurement
